Nautitech 47 Powercat


Length overall:
45′ 8″
Beam overall:
24′ 9″
Cabins / Bathrooms:
3/4 – 2/4
6 or 8

NAUTITECH 47 Powercat


Nautitech 47 PowerCat, go Faster, Further and with all the Comfort

SPEED -The Nautitech 47 Power is powered by two Volvo Penta D4 engines outputting 225 or 300 hp which ensure a maximum speed of 22 knots ( with opt 300hp) and a range of 1,000 miles at 8.5-knot cruising speed

COMFORT- Space has been imagined to offer an unrivaled liveaboard experience. Warmer woodwork, a variety of materials, and a multitude of storage spaces are all welcome features of this new option for the power catamarans market. An interior steering station will enhance comfort and create a motor yacht atmosphere. The cabins are light and airy thanks to the doubt hull windows and multiple openings on the outside. Comfort and privacy are ensured via private bathrooms for each cabin.

PERFORMANCE – Marc Lombard designed the Nautitech 47 to maintain it’s stability while cruising in any sea conditions. The boat is stable and cut the waves like an arrow,  thanks to it’s narrow hulls shape below the waterline.

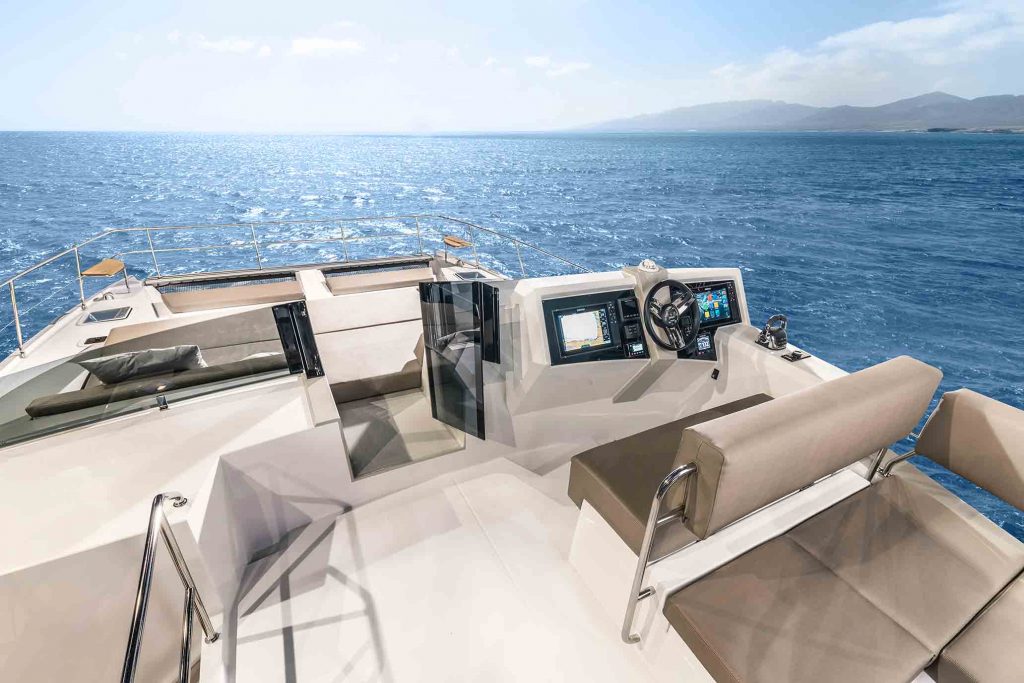

EXTERIOR SPACES – The Nautitech 47 features 3 exterior areas, The Front deck, the cockpit, and the Fly Bridge. The front deck features two large seating areas with two tables. The cockpit includes a table and seating area for 12 guests, and the bathing platform and the flybridge features the helm and a seating area with another table.

      • Two Volvo Penta D4 225 HP or 300 HP

      • 22 Knots Cruising Speed

      • 1000 Miles cruising Range at 8 knots

      • The largest cockpit table in the market, seating 12 guests

      • Full height refrigerator and fully equipped Kitchen

      • Front deck lounge with bar and storage

      • Fly deck Wet Bar with sink and fridge

      • Bow Thruster Option with Joystick

      • Hydraulic tender lift platform, optional

      • Fly Bridge Hard Top, optional

      • Options for Dishwasher, Washer & Dryer, Wine Coler

      • Very Stiff construction, with vacuum infused deck

      • French Design & engineering

      • Want to go sailing? Nautitech 46 open



Do you want to configuring a new Nautitech 47 Powercat ?


Length hull 46’8″
Length waterline 46′ 6”
Beam overall 24′ 9”
Draught (approx.), standard 3′ 11”
Unloaded weight 33075 lbs
Engine 2 x 225 hp Volvo Penta
Engine power 2 x 225 hp
Fuel tank (approx.) 159 gal
Water tank (approx.), standard 2 x 170 gal
Cabins 3 – 4
Bathrooms 3/4
Berths 8
Fuel Tank 2 x 170 gal
Naval Architect Marc Lombard
Interior Design Nautitech Design Team
Forward cabins (4 cabin version)
Double bed (140/165X200)
Mattress with washable cover in standard colour
Wall-locker, hanging and shelves
Wall unit with shelf
Storage space under bed
Standard blinds for hatches and windows
One opening portlight in hullwindow
LED lights in the ceiling
Aft cabins (4 cabin version)
Double bed, 160X200
Mattress with washable cover standard colour
Wall-locker, hanging and shelves
Wall unit
Shelf on outer side of hull
Storage space under bed
One opening portlight in hullwindow
Opening porthole above the headboard
Standard blinds for hatches and windows
LED lights in the ceiling
Owner version (replaces forward and aft cabin in port hull)
Double bed, 160 x 200 cm
Mattress with washable cover standard colour
Wall-locker, hanging and shelves
Wall unit
Shelf on outer side of hull
Storage space under bed
One opening portlight in hullwindow
Opening porthole above the headboard
Large locker with three doors
Fold-down desk with seat
One opening portlight in hullwindow above desk
Standard blinds for hatches and windows
LED lights in the ceiling
Large head with separate shower cabin
Six lockers and three mirrors in head
Pump-toilet, disposal via seacock
Bathrooms (1 per cabin)
1 Separate shower cabin per hull (incl.mixing tap and support)
Sink with mixing tap
Bathroom storage
Towel rail
Pump-toilet, disposal via seacock
Opening portlight in bathroom
LED lights in the ceiling
Passage way
Storage cupboard (optional: washing machine on starboard)
Handrail at companion-way
LED light in the ceiling
Salon / Galley
2 drawer Fridge 182L portside
Galley ice box 85L
3 part sofa with storage (incl. 2 ottoman seats)
Salon convertible to guest bed
LED lights in the ceiling
Large deckhouse windscreen with 2 flush hatches
2 Top zenital windows
Double sliding doors, lockable
Ottoman seat with removable tray as coffee table
Storage and drawer under the seats
Cupboards for storage with drawers, shelves and pullout
Double sink with mixer tap
Two burner stove with separate oven
Waste bin
Bottle locker
Hull colour white
8 Hull windows
Coloured stripe on hull, grey
GRP keel (bonded)
Prebalanced rudders with stainless steel stock
Steering pedestal
2 Helm stations with compass and st/st steering wheels
2 Cup holders
2 Stainless steel Helmsman seats
Emergency tiller
Anodised aluminium forward beam with integrated
anchor roller
Electric windlass with wired remote, bridle and cleat, 1500 W
Polyester safety net laced to hull and front beam
2 Forward pulpits with seats in teak
Bow anchor locker and storage
6 Mooring cleats, aluminium
8 Deck hatches
2 Handrails on coachroof
Mainsheet traveller on the coachroof
Self-tacking furling jib
10 person GRP dining table, 1.73 m x 0,79 m
Storage locker (optional fridge)
Teak grating over cockpit drainage
3 Large cockpit lockers
Aft beam lockers (liferaft dedicated)
Aft deck and stern platform
Aft pushpits
2 Stainless steel handrails
Cockpit shower with hot/cold water on Stb
2 Engine compartment hatches
Foldable bathing ladder on starboard
Standing / Running gear
Deckhouse stepped mast in anodised aluminium with two spreader sets
Running rigging
Anodised aluminium boom
Full batten mainsail with 3 reef lines
Self-tacking Solent jib with UV protection
1 x Lewmar Evo aluminium winch on mast, 2-gear, selftailing
3 x Lewmar Evo aluminium winches in cockpit, 2-gear, selftailing
2 Winch handles and pockets
Mooring Kit (8 Fenders with socks, 4 mooring lines)
Water System – Bilge system
2x 85 L Holding tanks (one per hull)
2x 300 L freshwater tanks
Warm water boiler via engine-cooling, 60L
Pressurised water system
Indicator for freshwater
Electric and manual bilge pumps in both hulls
Electric bilge pumps in both engine compartments
Propulsion System
Soundproofing in engine compartments
2 x 40 HP diesel engines with Saildrive
2 x alternators 115 Ah
2 x three-blades fixed propellers
Indicator for diesel
Electrical system
3 x 12 V / 140 Ah services gel batteries
2 x 12 V / 90 Ah engine batteries (no maintenance)
Shore power connection 230V/32 A with 15m shore cable +
32/16 A cable adaptator
Battery charger 80 A
10 x 220 Plugs in all cabins, salon and galley
12V Electrical panel at companion-way Portside
230 V electrical panel in aft cabin closet Portside
Galvanic isolator
Indicator for service battery bank
LED navigation lights and anchor light
CE-Certification Category A (12 Pers.)
CE-Certification Category B (12 Pers.)
CE-Certification Category C (24 Pers.)
CE-Certification Category D (24 Pers.)
