Length overall:
45′ 3″
Beam overall:
24′ 9″
Cabins / Bathrooms:
3/4 – 2
Berths:
6 or 8
NAUTITECH 46 Open

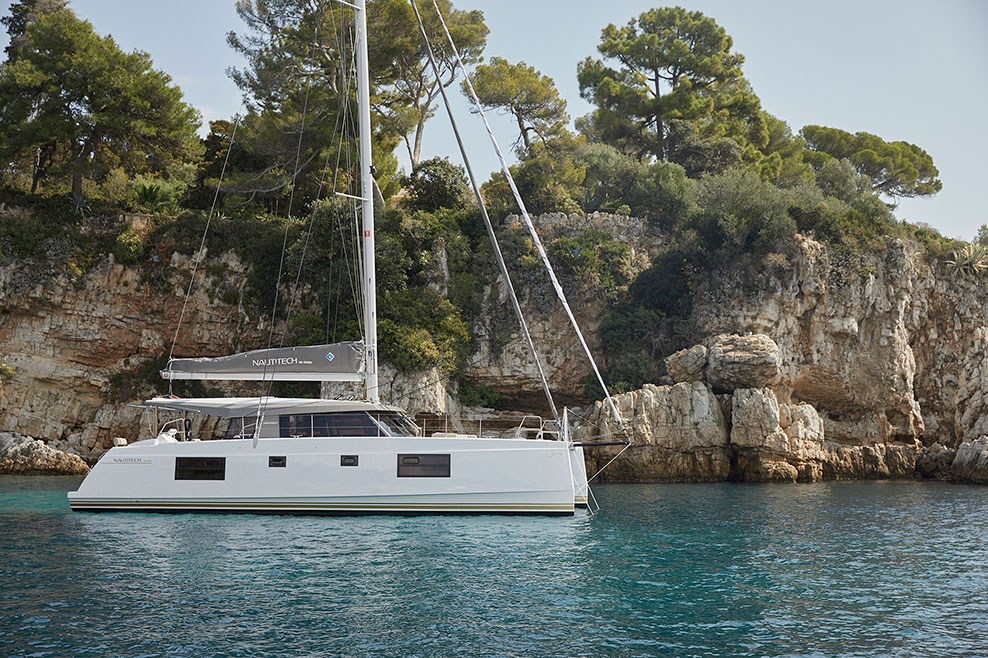

THE NAUTITECH 46 Open
FAST and SAFE Performance Sailing
The big sister to the extremely successful 40, the new Nautitech 46 Open is the latest addition to the ‘Open’ range of multihulls.
Featuring vast living spaces, maximum comfort for long passages, and ultra-modern finishes throughout, the Nautitech 46 Open is a cruiser’s dream.
This model features many welcome features found on the 40, including twin helm positions, a transom passage giving easy access from one hull to the other, rigid bimini providing complete shelter to the cockpit, and gracefully inclined forward saloon windows, creating a sleek and elegant appearance.
Going with the trend in cruising multihulls today, the layout of the Nautitech 46 Open is all about entertaining. From the sun lounge on the bow trampolines to the bright, open saloon to the big cockpit astern, traffic flow for a multitude will be easy.
In the gallery above, you will see that the 3 cabin version boasts a stunning owner’s hull, with private study/dressing space, and separate heads and shower. In the 4 cabin version, each cabin has its own bathroom and shower.
The Nautitech 46 Open is for the enthusiastic audience among sociable sailors who want the comfort and style of a nice seaside apartment along with the ability to handle rough conditions when they occur. It would be a nice platform for cruising the East Coast in summer and going south to the islands when winter comes.
-
The largest cockpit table in the market, seating 12 persons
-
Best Sailing Performance in class
-
Two helm stations for better maneuvering in harbors
-
Very Stiff construction, with vacuum infused deck & hull
-
Detachable keel system for extra safety
-
Lower boom position, for stability and safety
-
25% less hull weight than any other 40′ catamaran
-
Propellers positioed to work flawlessly during high seas
-
French Design & engeniering
-
Nautitech 46 Open, a True Bluewater Catamaran
Do you want to configure your dream Catamaran?
STANDARD EQUIPMENT & SPECIFICATIONS
| Length hull | 45′ |
| Length waterline | 45′ 3” |
| Beam overall | 24′ 9” |
| Draught (approx.), standard | 4′ 9” |
| Unloaded weight | 23.810 lbs |
| Engine | Volvo Penta with Saildrive D2-50, diesel |
| Engine power | 39,6 hp |
| Fuel tank (approx.) | 159 gal |
| Water tank (approx.), standard | 159 gal |
| Cabins | 3 – 4 |
| Bathrooms | 3/4 |
| Berths | 8 |
| Height of mast above water line (approx.) | 75′ 2” |
| Mainsail and furling jib | 797 sq. ft. |
| Self-tacking jib | 409 sg. ft. |
Forward cabins (4 cabin version)
| Double bed (140/165X200) |
| Mattress with washable cover in standard colour |
| Wall-locker, hanging and shelves |
| Wall unit with shelf |
| Storage space under bed |
| Standard blinds for hatches and windows |
| One opening portlight in hullwindow |
| LED lights in the ceiling |
Aft cabins (4 cabin version)
| Double bed, 160X200 |
| Mattress with washable cover standard colour |
| Wall-locker, hanging and shelves |
| Wall unit |
| Shelf on outer side of hull |
| Storage space under bed |
| One opening portlight in hullwindow |
| Opening porthole above the headboard |
| Standard blinds for hatches and windows |
| LED lights in the ceiling |
Owner version (replaces forward and aft cabin in port hull)
| Double bed, 160 x 200 cm |
| Mattress with washable cover standard colour |
| Wall-locker, hanging and shelves |
| Wall unit |
| Shelf on outer side of hull |
| Storage space under bed |
| One opening portlight in hullwindow |
| Opening porthole above the headboard |
| Large locker with three doors |
| Fold-down desk with seat |
| One opening portlight in hullwindow above desk |
| Standard blinds for hatches and windows |
| LED lights in the ceiling |
| Large head with separate shower cabin |
| Six lockers and three mirrors in head |
| Pump-toilet, disposal via seacock |
Bathrooms (1 per cabin)
| 1 Separate shower cabin per hull (incl.mixing tap and support) |
| Sink with mixing tap |
| Bathroom storage |
| Towel rail |
| Mirror |
| Pump-toilet, disposal via seacock |
| Opening portlight in bathroom |
| LED lights in the ceiling |
Passage way
| Storage cupboard (optional: washing machine on starboard) |
| Handrail at companion-way |
| LED light in the ceiling |
Salon / Galley
| 2 drawer Fridge 182L portside |
| Galley ice box 85L |
| 3 part sofa with storage (incl. 2 ottoman seats) |
| Salon convertible to guest bed |
| LED lights in the ceiling |
| Large deckhouse windscreen with 2 flush hatches |
| 2 Top zenital windows |
| Double sliding doors, lockable |
| Ottoman seat with removable tray as coffee table |
| Storage and drawer under the seats |
| Cupboards for storage with drawers, shelves and pullout |
| Double sink with mixer tap |
| Two burner stove with separate oven |
| Waste bin |
| Bottle locker |
Hull
| Hull colour white |
| 8 Hull windows |
| Coloured stripe on hull, grey |
Rudder/Keel
| GRP keel (bonded) |
| Prebalanced rudders with stainless steel stock |
Steering pedestal
| 2 Helm stations with compass and st/st steering wheels |
| 2 Cup holders |
| 2 Stainless steel Helmsman seats |
| Emergency tiller |
Deck/Cockpit
| Anodised aluminium forward beam with integrated |
| anchor roller |
| Electric windlass with wired remote, bridle and cleat, 1500 W |
| Polyester safety net laced to hull and front beam |
| 2 Forward pulpits with seats in teak |
| Bow anchor locker and storage |
| 6 Mooring cleats, aluminium |
| 8 Deck hatches |
| Guardrail |
| 2 Handrails on coachroof |
| Mainsheet traveller on the coachroof |
| Self-tacking furling jib |
| 10 person GRP dining table, 1.73 m x 0,79 m |
| Storage locker (optional fridge) |
| Teak grating over cockpit drainage |
| 3 Large cockpit lockers |
| Aft beam lockers (liferaft dedicated) |
Aft deck and stern platform
| Aft pushpits |
| 2 Stainless steel handrails |
| Cockpit shower with hot/cold water on Stb |
| 2 Engine compartment hatches |
| Foldable bathing ladder on starboard |
Standing / Running gear
| Deckhouse stepped mast in anodised aluminium with two spreader sets |
| Running rigging |
| Anodised aluminium boom |
Sails
| Full batten mainsail with 3 reef lines |
| Self-tacking Solent jib with UV protection |
Winches
| 1 x Lewmar Evo aluminium winch on mast, 2-gear, selftailing |
| 3 x Lewmar Evo aluminium winches in cockpit, 2-gear, selftailing |
| 2 Winch handles and pockets |
Delivery
| Mooring Kit (8 Fenders with socks, 4 mooring lines) |
Water System – Bilge system
| 2x 85 L Holding tanks (one per hull) |
| 2x 300 L freshwater tanks |
| Warm water boiler via engine-cooling, 60L |
| Pressurised water system |
| Indicator for freshwater |
| Electric and manual bilge pumps in both hulls |
| Electric bilge pumps in both engine compartments |
Propulsion System
| Soundproofing in engine compartments |
| 2 x 40 HP diesel engines with Saildrive |
| 2 x alternators 115 Ah |
| 2 x three-blades fixed propellers |
| Indicator for diesel |
Electrical system
| 3 x 12 V / 140 Ah services gel batteries |
| 2 x 12 V / 90 Ah engine batteries (no maintenance) |
| Shore power connection 230V/32 A with 15m shore cable + |
| 32/16 A cable adaptator |
| Battery charger 80 A |
| 10 x 220 Plugs in all cabins, salon and galley |
| 12V Electrical panel at companion-way Portside |
| 230 V electrical panel in aft cabin closet Portside |
| Galvanic isolator |
| Indicator for service battery bank |
Navigation
| LED navigation lights and anchor light |
Certification
| CE-Certification Category A (12 Pers.) |
| CE-Certification Category B (12 Pers.) |
| CE-Certification Category C (24 Pers.) |
| CE-Certification Category D (24 Pers.) |
