NAUTITECH Open 46 Fly
The Nautitech 46 Fly does not take its name from an ability to become airborne but is the flybridge version of the popular 46 Open. The flybridge opens a spacious area for skipper and passengers, provides excellent visibility in all directions and consolidates control lines neatly in one place.

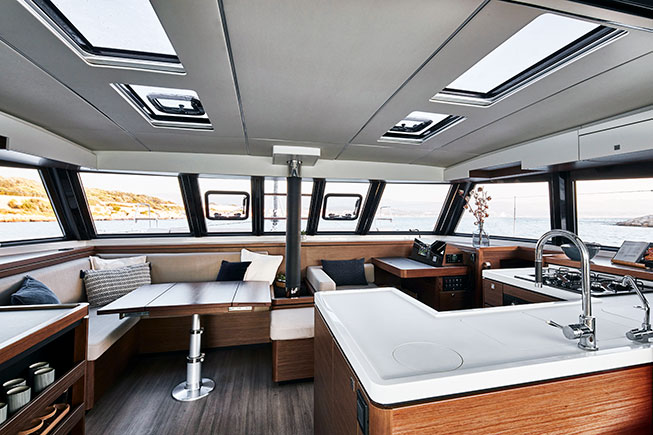

Going with the trend in cruising cats today, the plan of the Nautitech 46 Fly is all about entertaining. From the sun lounge on the bow trampolines to the bright, open saloon to the big cockpit astern, traffic flow for a multitude will be easy. There’s also a more intimate space for conversation on the flybridge, where the backrest of the helm seat pivots when at anchor to provide two additional seats.
Beyond that, the flybridge is set up as the control center for the boat, with all the halyards and sheets leading to three electric winches close to the wheel. Visibility is nearly perfect from here, although furling the mainsail could be a challenge due to the fact that the boom is far enough above the cabin top that even tall crew members must climb some mast steps to push the last bit of the luff into the cover. That said, Bavaria also offers a hardtop that will put the entire length of the boom within easy reach thereby solving this problem.
The Nautitech 46 Fly is for the enthusiastic audience among sociable sailors who want the comfort and style of a nice seaside apartment along with the ability to handle rough conditions when they occur. It would be a nice platform for cruising the East Coast in summer and going south to the islands when winter comes
Length overall | 45′ |
Length waterline | 45′ 3” |
Beam overall | 24′ 9” |
Draught standard cast iron keel (approx.) | 4′ 9” |
Unloaded weight | 25.133 lbs |
Engine | Volvo Penta with Saildrive D2-40, diesel |
Engine power | 39,6 hp |
Fuel tank (approx.) | 159 gal |
Water tank (approx.) | 159 gal |
Cabins – Bathrooms, standard | 3/4 |
No. of cabins | 3/4 – 2 |
Bathrooms | 3/4 |
Berths, standard version | 8 |
Berths | 8 |
Mainsail and furling jib, standard (approx.) | 742 sq. ft |
Height of mast above water line (approx.) | 75′ 2” |
Self-tacking jib, standard (approx.) | 409 sg. ft. |
Double bed (140/165X200) |
Mattress with washable cover in standard colour |
Wall-locker, hanging and shelves |
Wall unit with shelf |
Storage space under bed |
Standard blinds for hatches and windows |
One opening portlight in hullwindow |
LED lights in the ceiling |
Double bed, 160X200 |
Mattress with washable cover standard colour |
Wall-locker, hanging and shelves |
Wall unit |
Shelf on outer side of hull |
Storage space under bed |
One opening portlight in hullwindow |
Opening porthole above the headboard |
Standard blinds for hatches and windows |
Dimmable LED lights in the ceiling |
Double bed, 160 x 200 cm |
Mattress with washable cover standard colour |
Wall-locker, hanging and shelves |
Wall unit |
Shelf on outer side of hull |
Storage space under bed |
One opening portlight in hullwindow |
Opening porthole above the headboard |
Large locker with three doors |
Fold-down desk with seat |
One opening portlight in hullwindow above desk |
Standard blinds for hatches and windows |
LED lights in the ceiling |
Large head with separate shower cabin |
Lockers and three mirrors in head |
Pump-toilet, disposal via seacock |
1 Separate shower cabin per hull (incl. mixing tap and support) |
Sink with mixing tap |
Bathroom storage |
Towel rail |
Mirror |
Pump-toilet, disposal via seacock |
Opening portlight in bathroom |
LED lights in the ceiling |
Storage cupboard (option: washing machine on starboard) |
Handrail at companion-way |
Dimmable LED light in the ceiling |
2 drawer Fridge 182L portside |
Galley ice box 85L |
3 part sofa with storage (incl. 2 ottoman seats ) 1,85m x 0,75m |
Salon convertible to guest bed |
Dimmable LED lights in the ceiling |
Large deckhouse windscreen with 2 flush hatches |
2 Top zenital windows |
Double sliding doors, lockable |
Ottoman seat with removable tray as coffee table |
Storage and drawer under the seats |
Cupboards for storage with drawer, shelves and pullout |
Double sink with mixer tap |
Two-burner stove with separate oven |
Waste bin |
Bottle locker |
Hull colour white |
8 Hull windows |
Coloured stripe on hull, grey |
GRP keel (bonded) |
Prebalanced rudders with stainless steel stock |
Access from cockpit, portside via stairs |
Stainless steel handrails, around flydeck |
Electric lever for engine control |
1 Helm station with compass and s/s steering wheel |
1 Cup holder |
1 Helmsman seat (foldable backrest) |
Mainsheet traveller on the coachroof |
U-Shaped settee |
Adjustable sunbed backrest |
Communication Porthole between Fly and salon |
Anodised aluminium forward front beam with integrated anchor roller |
Electric windlass with wired remote, bridle and cleat, 1500 W |
Polyester safety net laced to hull and front beam |
2 Forward pulpits with seats in teak |
Bow anchor locker and storage |
6 Mooring cleats, aluminium |
8 Deck hatches |
Guardrail |
Handrails on coachroof |
10 person GRP dining table, 1.73 m x 0,79 m |
Teak grating over cockpit drainage |
3 Large cockpit lockers |
2 Aft beam lockers (liferaft dedicated) |
Emergency tiller |
Aft pushpits |
2 Stainless steel handrails |
Cockpit shower with hot/cold water on Starboard |
2 Engine compartment hatches |
Foldable bathing ladder on starboard |
Deckhouse stepped mast in anodised aluminium with two spreader sets |
Running rigging |
Anodised aluminium boom |
Full batten mainsail |
Self-tacking Solent jib with UV protection |
3 x Lewmar Evo aluminium winch , 2-gear, self-tailing, on flybridge |
2 Winch handles and pockets |
Mooring Kit (8 Fenders with socks, 4 mooring lines) |
2 Holding tanks (85 l per hull for 4 cabins – 85/65 l for owner version) |
2 x 300 l freshwater tanks |
Warm water boiler via engine-cooling, 60L |
Pressurised water system |
Indicator for freshwater |
Electric and manual bilge pumps in both hulls |
Electric bilge pumps in both engine compartments |
Soundproofing in engine compartments |
2 x 40 HP diesel engines with Saildrive |
2 x alternators 115 Ah |
2 x three-blades fixed aluminium propellers |
Indicator for diesel |
3x 12 V / 140 Amp services AGM batteries |
2x 12 V / 90 Amp engine batteries (no maintenance) |
Shore power connection 230V/32 A with 15m shore cable + |
32/16 A cable adaptator |
Battery charger 80 Amp |
10 x 220 Plugs in all cabins, salon and galley |
12V Electrical panel at companion-way Portside |
230 V electrical panel in aft cabin closet Portside |
Galvanic isolator |
Indicator for service battery bank |
LED navigation lights and anchor light |
CE-Certification Category A (12 Pers.) |
CE-Certification Category B (12 Pers.) |
CE-Certification Category C (24 Pers.) |
CE-Certification Category D (24 Pers.) |
