Length overall:
39′ 4″
Beam overall:
22′ 8″
Cabins / Bathrooms:
3/4 – 2
Berths:
8
Catamaran NAUTITECH Open 40
THE NAUTITECH 40 OPEN
The Catamaran Nautitech 40 OPEN, a new design with more upgrades
The 2018 Nautitech 40 Open is the NEW upgraded version of Marc Lombard, that again has succeeded in redefining the living space of a cruising catamaran. Whereas in the past the deck saloon and cockpit lounge have tended to be separate worlds, here they have been combined – resulting in a completely new feeling of space.
The 40 Open is a catamaran for sailors that understand how the performance features will made a better and safe handling. The Catamaran Nautitech 40 Open can achieve upwind angles that competitors can’t.
Based on the experience that daily life takes place in the cockpit, on a 40-foot vessel, either the cockpit lounge or saloon generally suffer from size limitations, but here, the two areas have simply been combined. This in turn has only been made possible with the help of a sophisticated tarpaulin system. As a result, dinners and parties will no longer be disturbed by wind or weather.
Schedule your demo today to understand why the Open 40 is the cat chosen by sailors.
-
The largest cockpit in the market, seating 10 persons
-
Best Sailing Performance in its class
-
360 Degrees unobstructed views from cockpit
-
Two helm stations for better maneuvering in harbors
-
Very Stiff construction, with vacuum infused deck & hull
-
Detachable keel system for extra safety
-
Lower boom position, for stability and safety
-
25% less hull weight than any other 40′ catamaran
-
Propellers position designed to work during high seas
-
French Design and German Engineering
Do you want to configure your dream catamaran ?
STANDARD EQUIPMENT & SPECIFICATIONS
| Length overall | 39′ 4” |
| Length waterline | 39′ 2” |
| Beam overall | 22′ 8” |
| Draught standard cast iron keel (approx.) | 4′ 5” |
| Unloaded weight | 18.739 lbs |
| Engine | Volvo Penta with Saildrive D1-20, diesel |
| Engine power | 14 kw / 18hp |
| Fuel tank (approx.) | 114 gal |
| Water tank (approx.) | 114 gal |
| Cabins – Bathrooms, standard | 3/4 – 2 |
| No. of cabins | 4 – 2 |
| Bathrooms | 2 |
| Berths, standard version | 8 |
| Berths | 8 |
| Mainsail, standard (approx.) | 678 sq. ft. |
| Height of mast above water line (approx.) | 65′ 9” |
| Self-tacking jib, standard (approx.) | 301 sq. ft. |
FORWARD CABINS (4 CABIN VERSION)
| Double bed, 155 x 195 cm |
| Mattress with washable cover in standard colour |
| Wall-locker, hanging and shelves |
| Wall unit with shelf |
| Storage space under bed |
| Standard blinds for hatches and windows |
| One opening portlight in hullwindow |
| LED lights in the ceiling |
AFT CABINS (4 CABIN VERSION)
| Double bed, 157 x 200 cm |
| Mattress with washable cover standard colour |
| Wall-locker, hanging and shelves |
| Wall unit |
| Shelf on outer side of hull |
| Storage space under bed |
| Storage next to bed with reading lights |
| One opening portlight in hullwindow |
| Opening porthole above the headboard |
| Standard blinds for hatches and windows |
| LED lights in the ceiling |
OWNER VERSION (REPLACES FORWARD AND AFT CABIN IN PORT HULL)
| Double bed, 157 x 200 cm |
| Mattress with washable cover standard colour |
| Wall-locker, hanging and shelves |
| Wall unit |
| Shelf on outer side of hull |
| Storage space under bed |
| Storage next to bed with reading lights |
| One opening portlight in hullwindow |
| Opening porthole above the headboard |
| Large locker with three doors |
| Fold-down desk with seat |
| One opening portlight in hullwindow above desk |
| Standard blinds for hatches and windows |
| LED lights in the ceiling |
| Large head with separate shower cabin |
| Six lockers and three mirrors in head |
| Pump-toilet, disposal via seacock |
HEADS (4 CABIN VERSION)
| Sink with mixing tap |
| Shower with mixing tap and support |
| Shelves above toilet |
| Towel rail |
| Mirror |
| Pump-toilet manual (sea water rinse) |
| One opening portlight in hullwindow |
| LED lights in the ceiling |
PASSAGE WAY
| Storage cupboard (optional: washing machine or freezer 60l on starboard) |
| Handrail at companion-way |
| LED light in the ceiling |
SALON
| LED lights in the ceiling |
| Sole, Flexiteek (Synthetic-Teak) |
| Large deckhouse windscreen with two portholes |
| Two hatches |
| Double sliding doors, lockable |
| Dinette/Navigation table with cushions |
| Storage and drawer under the seats |

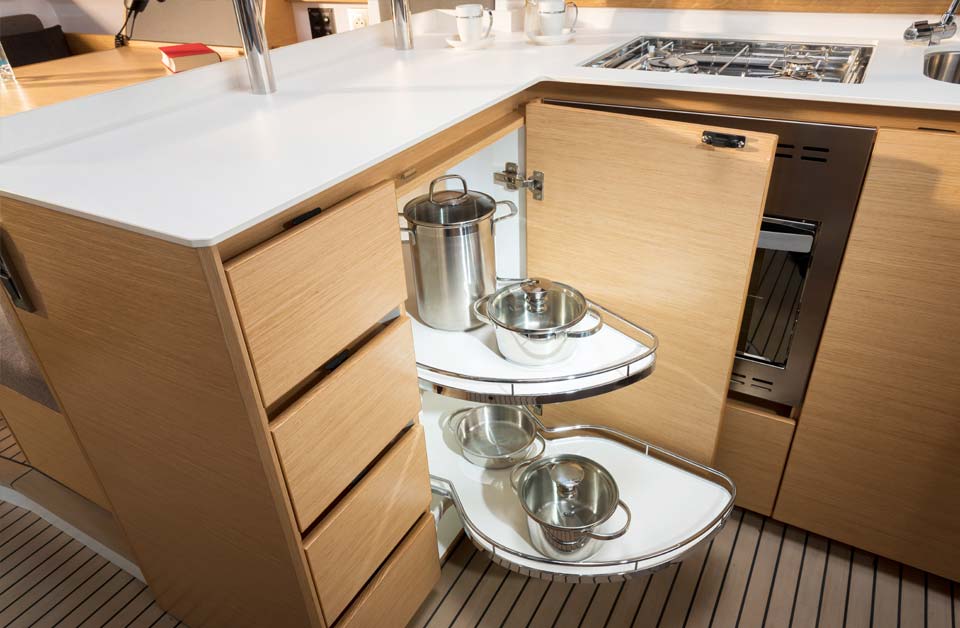

GALLEY
| Cupboards for storage with drawers, shelves and pullout |
| Double stainless steel sink with mixer tap |
| 2 burner stove with separate oven |
| Led light for work top |
| Waste bin |
| Refrigerator 130 L 12V |
| Bottle locker |
Hull
| Hull colour white |
| 6 Hull windows |
| Coloured stripe on hull, grey |
Rudder/Keel
| GRP keel (bonded) |
| Prebalanced rudders with stainless steel stock |
STEERING PEDESTAL
| Two helm stands with compass and st/st steering wheel/s |
| Instrument console |
| 1 Cup holder |
| 2 S/S Helmsman seat |
| Emergency tiller |
DECK/COCKPIT
| Anodised aluminium forward beam |
| Polyester safety net laced to hull and front beam |
| 2 Forward pulpits with seats in teak |
| Bow anchor locker and storage |
| Electrical windlass with wired remote, bridle and cleat, 1000 W |
| 6 Mooring cleats, aluminium |
| 6 Deck hatches |
| Guardrail |
| 2 Handrails on coachroof |
| Furling jib |
| Mainsheet traveller on the coachroof |
| Self-tacking jib track on the foredeck |
| 10 person GRP dining table, 1.73 m x 0,79 m |
| Adjustable backrest on port bench |
| GRP storage locker (optional fridge) |
| Teak grating over cockpit drainage |
| 4 Large cockpit lockers |
| Life raft locker (80x30x52 cm) |
AFT DECK AND STERN PLATFORM
| Aft pushpits |
| 2 Stainless steel handrails |
| Cockpit shower with hot/cold water on Stb. |
| 2 Hatches to engine compartment |
| Foldable bathing ladder stainless steel on starboard |
STANDING / RUNNING GEAR
| Deck stepped mast in anodised aluminium with two spreader sets |
| Running rigging |
| Anodised aluminium boom |
| Snatch block for reef line return |
SAILS
| Full batten mainsail with 3 reef lines |
| Self-tacking Solent jib with UV protection |
WINCHES
| 1 x Lewmar Evo aluminium winch on mast, 2-gear, self-tailing |
| 3 x Lewmar Evo aluminium winches in cockpit, 2-gear, selftailing |
| 2 Winches handles and pockets |
WATER SYSTEM – BILGE SYSTEM
| 2 Holding tanks 45 l (one per hull) |
| 2x 215 L freshwater tanks |
| Warm water boiler via engine-cooling, 40 l |
| Pressurised water system |
| Indicator for freshwater |
| Electric and manual bilge pumps in both hulls |
| Electric bilge pumps in both engine compartments |
PROPULSION SYSTEM
| Soundproofing in engine compartments |
| 2 x 20 HP diesel engines with Saildrive |
| 2 x alternators 115 Ah |
| 2 x three-blades aluminium fixed propellers |
| Indicator for gasoline |
ELECTRICAL SYSTEM
| Shore power connection 230V / 32A with shore cable 15m + 32/16A cable adaptator |
| Battery charger 60A |
| 220V plugs in all cabins, salon and galley |
| Galvanic isolator |
| 3 x 12 V / 107 Ah services gel batteries (no maintenance) |
| 2 x 12 V / 90 Ah engine batteries (no maintenance) |
| Power panel (switch batteries, circuit breakers) in aft cabin on port side |
| Electrical panel at companion-way |
| Indicator for service battery bank |
NAVIGATION
| Mooring Kit (6 Fenders with socks, 4 mooring lines) |
| LED navigation lights and anchor light |
CERTIFICATION
| CE-Certification Category A (10 Pers.) |
| CE-Certification Category B (10 Pers.) |
| CE-Certification Category C (22 Pers.) |
| CE-Certification Category D (22 Pers.) |
CABIN LAYOUTS
VIDEOS
Need More Information on the Nautitech 40 Open ?
